The fitting is connecting to the tube/pipe and to the tanks and is necessary for pumping the fluid from the tanks.
There is a wide variety of coupler/fitting depending on the screw size and connection tube diameter.

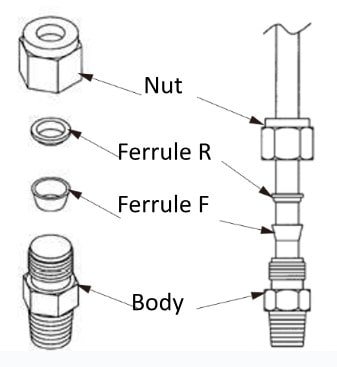

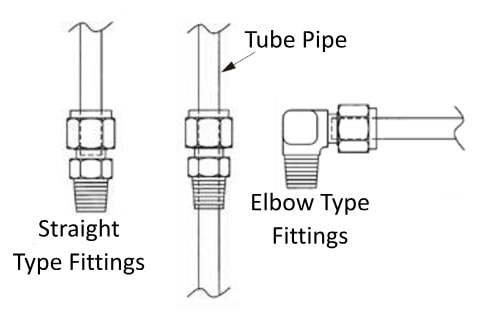

3 types are available, namely straight, elbow and through type.
 |
 |
Stainless Steel Fittings
|
Model
|
Shape
|
Mounting screws
|
Applicable Tube Size (inner diameter × outer diameter)
|
Applicable Tube Type (White Translucent)
|
Applicable Tube Type (Black)
|
| JS46-01S |
Straight
|
R1/8 |
Φ4×Φ6
|
HT46
|
HT46B
|
| JS46-02S | R1/4 | ||||
| JS46-03S | R3/8 | ||||
| JS46-01E |
Elbow
|
R1/8 | |||
| JS46-02E | R1/4 | ||||
| JS46-03E | R3/8 | ||||
| JS46-01TF |
Through
|
R1/8 | |||
| JS46-02TF | R1/4 | ||||
| JS46-03TF | R3/8 |
|
Model
|
Shape
|
Mounting screws
|
Applicable Tube Size (inner diameter × outer diameter)
|
Applicable Tube Type (White Translucent)
|
Applicable Tube Type (Black)
|
| JS68-01S |
Straight
|
R1/8 |
Φ6×Φ8
|
HT68
|
HT68B
|
| JS68-02S | R1/4 | ||||
| JS68-03S | R3/8 | ||||
| JS68-01E |
Elbow
|
R1/8 | |||
| JS68-02E | R1/4 | ||||
| JS68-03E | R3/8 | ||||
| JS68-02TF |
Through
|
R1/4 | |||
| JS68-03TF | R3/8 |
|
Model
|
Shape
|
Mounting screws
|
Applicable Tube Size (inner diameter × outer diameter)
|
Applicable Tube Type (White Translucent)
|
Applicable Tube Type (Black)
|
| JS810-01S |
Straight
|
R1/8 |
Φ8×Φ10
|
HT810
|
HT810B
|
| JS810-02S | R1/4 | ||||
| JS810-03S | R3/8 | ||||
| JS810-01E |
Elbow
|
R1/8 | |||
| JS810-02E | R1/4 | ||||
| JS810-03E | R3/8 | ||||
| JS810-03TF | Through | R3/8 |
|
Model
|
Shape
|
Mounting screws
|
Applicable Tube Size (inner diameter × outer diameter)
|
Applicable Tube Type (White Translucent)
|
Applicable Tube Type (Black)
|
| JS1012-02S |
Straight
|
R1/4 |
Φ10×Φ12
|
HT1012
|
HT1012B
|
| JS1012-03S | R3/8 | ||||
| JS1012-02E |
Elbow
|
R1/4 | |||
| JS1012-03E | R3/8 | ||||
| JS1012-03TF | Through | R3/8 |
Fluoropolymer Fittings
|
Model
|
Shape
|
Mounting screws
|
Applicable Tube Size (inner diameter × outer diameter)
|
Applicable Tube Type (White translucent)
|
Applicable Tube Type (Black)
|
| JT23-M6V | ー | M6 |
Φ2×Φ3
|
HT23
|
HT23B
|
| JT23-01S |
Straight
|
R1/8 | |||
| JT23-02S | R1/4 | ||||
| JT23-01E | Elbow | R1/8 | |||
| JT23-01T |
Through
|
R1/8 | |||
| JT23-02T | R1/4 |
|
Model
|
Shape
|
Mounting screws
|
Applicable Tube Size (inner diameter × outer diameter)
|
Applicable Tube Type (White translucent)
|
Applicable Tube Type (Black)
|
| JT46-M6V | ー | M6 |
Φ4×Φ6
|
HT46
|
HT46B
|
| JT46-01S |
Straight
|
R1/8 | |||
| JT46-02S | R1/4 | ||||
| JT46-03S | R3/8 | ||||
| JT46-01E | Elbow | R1/8 | |||
| JT46-01T |
Through
|
R1/8 | |||
| JT46-02T | R1/4 | ||||
| JT46-03T | R3/8 |
|
Model
|
Shape
|
Mounting screws
|
Applicable Tube Size (inner diameter × outer diameter)
|
Applicable Tube Type (White Translucent)
|
Applicable Tube Type (Black)
|
| JT68-01S |
Straight
|
R1/8 |
Φ6×Φ8
|
HT68
|
HT68B
|
| JT68-02S | R1/4 | ||||
| JT68-03S | R3/8 | ||||
| JT68-02T |
Through
|
R1/4 | |||
| JT68-03T | R3/8 |
|
Model
|
Shape
|
Mounting screws
|
Applicable Tube Size (inner diameter × outer diameter)
|
Applicable Tube Type (White Translucent)
|
Applicable Tube Type (Black)
|
| JT810-01S |
Straight
|
R1/8 |
Φ8×Φ10
|
HT810
|
HT810B
|
| JT810-02S | R1/4 | ||||
| JT810-03S | R3/8 | ||||
| JT810-03T | Through | R3/8 |
|
Model
|
Shape
|
Mounting screws
|
Applicable Tube Size (inner diameter × outer diameter)
|
Applicable Tube Type (White Translucent)
|
Applicable Tube Type (Black)
|
| JT1012-02S |
Straight
|
R1/4 |
Φ10×Φ12
|
HT1012
|
HT1012B
|
| JT1012-03S | R3/8 |
*If you have other request besides the above mentioned standard products, please contact sales department.
