H Series Electrolyte Compatible Type Wet Cup Specification [Servo Motor Driven]

It is a wet cup specification of the H series. It is mainly ideal for filling liquids that crystallize when exposed to air. The wetted part is a precision structure based on the B series.

  • By making the drive unit servo motor driven, each setting can be quantified and resetting can be easily performed.
  • Stable operation at low speeds, which is difficult with air drive
  • It is easy to link with other devices and is ideal for equipment manufacturers who coordinate the entire device.
  • By preparing the motor and controller by the customer, it is easy to customize it according to the application.
  • By selecting a motor that is easy to procure in the country of use, you can reduce the anxiety of procuring motors and control equipment.
  • It is ideal for filling large batteries with electrolytes, which crystallize when exposed to air, such as when filling electrolytes.

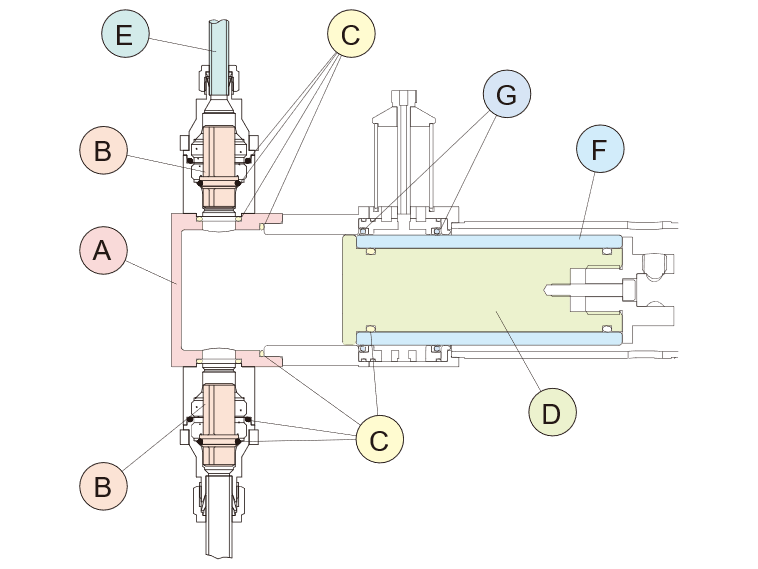

Material of wetted parts

Wetted part name Material Name
A. Pump head SUS316
B. Poppet PTFE、POM
C. O-ring EPDM, FKM, Silicone, CR, FFKM, Kalrez ®
D. Plunger PTFE, Polypropylene
E. Tube Polyethylene, PFA
F. Sleeve SUS316
G. Plunger Seal Outside: PTFE
Inside: EPDM, FKM, Silicone, CR, FFKM, Kalrez ®

* Kalrez® is a trademark or registered of DuPont Corporation or its affiliates.



List of Models

MODEL Overall length dimension (mm)*1 Weight (kg)*1 Maximum discharge rate (cc)
4S1-C-W58-□□□□ (425) 10 ~58.12
4S2-C-W116-□□□□ (475) 11 ~116.24
4S3-C-W174-□□□□ *2 *2 ~174.35
4S4.5-C-W260-□□□□ (660) 14 ~260.53
5S3-C-W500-□□□□ (855) 37 ~542.97

*1 Reference dimensions and weight excluding motor.

*2 Please contact us for dimensions and weight.
