KB Series (Electric Motor)

With the installation of a digital display tachometer, the speed is clear and easy to adjust. With a wide lineup ranging from 30W to 200W, it can handle various liquids from low viscosity to high viscosity.

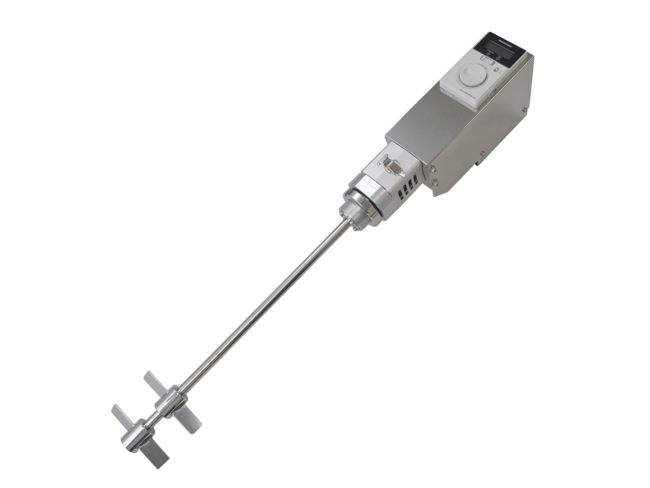

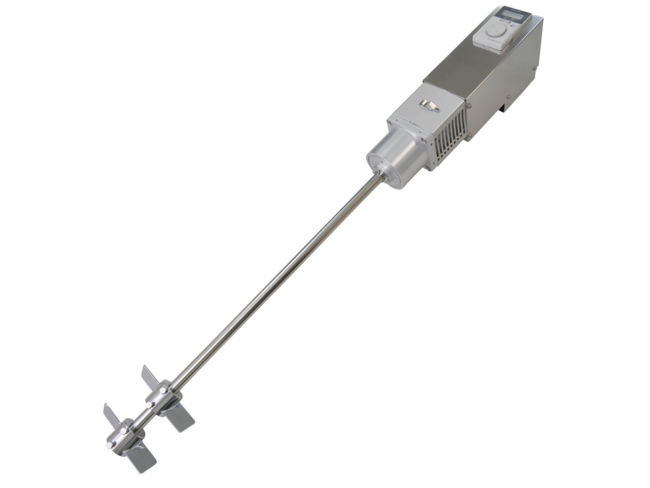

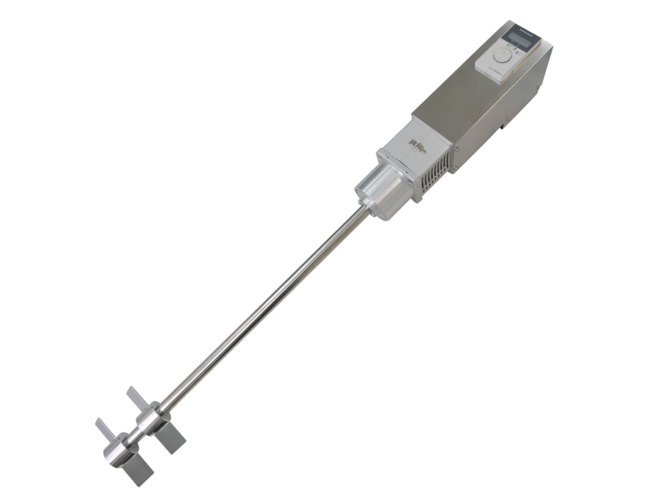

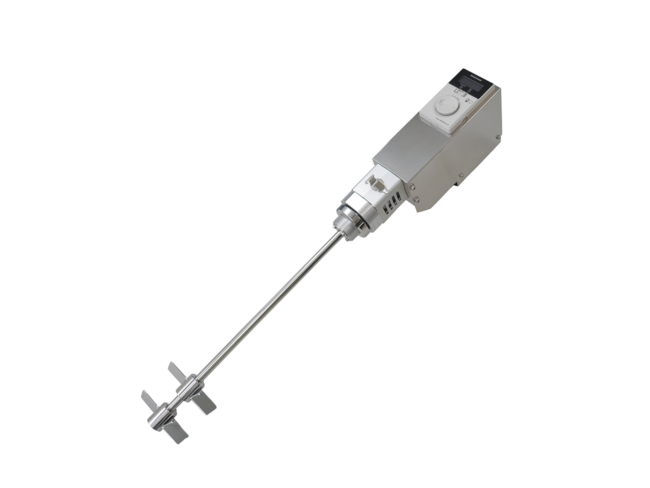

Model KB30/30E Series KB60/60E Series KB120/120E Series KB200/200E Series

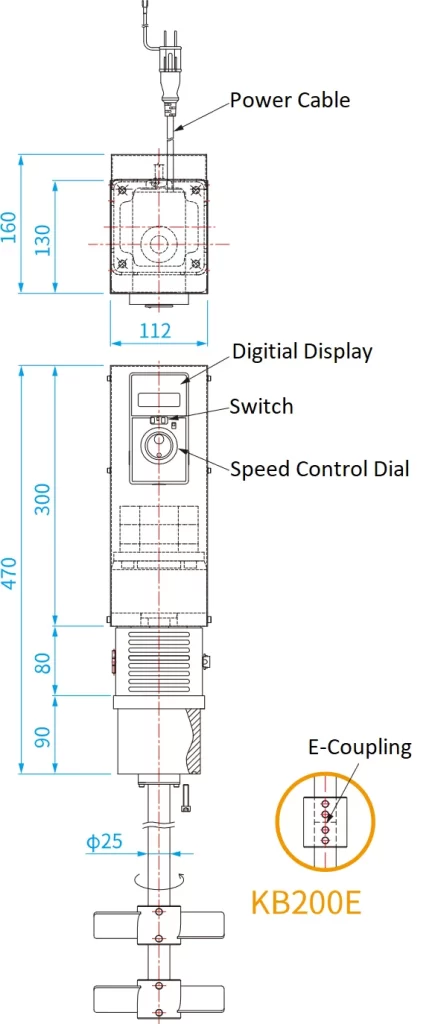

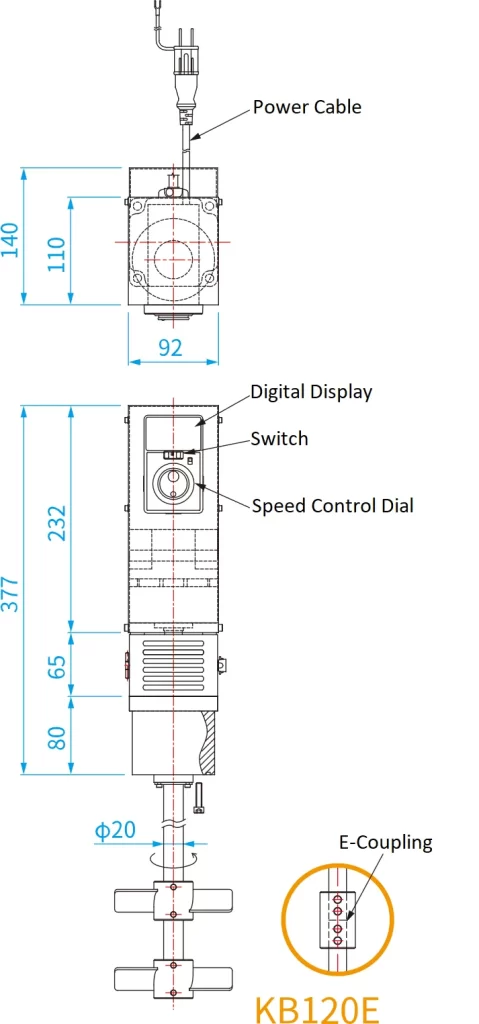

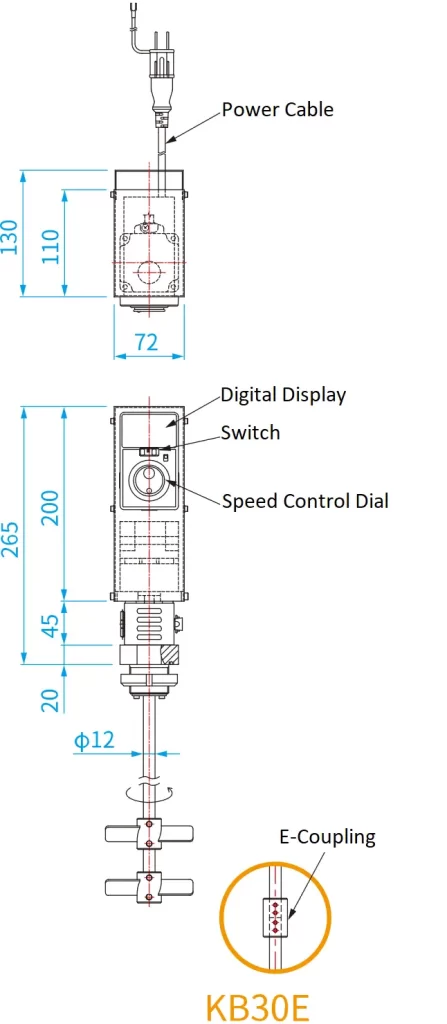

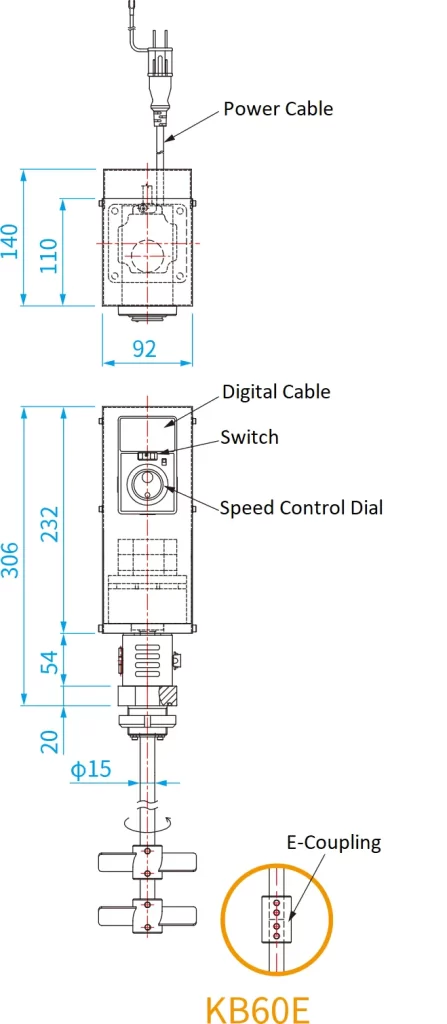

KB30 or 30E (Drawing) KB60 or KB60E (Drawing) KB120 or KB120E (Drawing) KB200 or KB200E (Drawing)



Model * 1 KB30/30E Series KB60/60E Series KB120/120E Series KB200/200E Series
Wattage (output) 30 60 120 200
Reduction ratio 10 10 10 20
Torque (N·m) 0.65~0.9 1.3~1.8 2.6~4.1 8.6~11.5
Speed (rpm) 8~400 8~400 8~400 4~200
Speed control Standard Specifications (digital display) Standard specifications (digital display) Standard specifications (digital display) Standard specifications (digital display)
Shaft φ12 φ15 φ20 φ25
Power Single Phase 100~120V(50/60Hz) Single phase 100~120V(50/60Hz) Single phase 100~120V(50/60Hz) Single phase 100~120V(50/60Hz)
Installation to the lid Lock Nut Lock Nut Bolted Bolted

※ 1: “E” in each model number refers to the E-coupling specification.
※ 2: The torque and rotational speed are values relative to the reduction ratio listed in the table.

※You can choose either two-stage 2-blade inclined paddles or one-stage 4-blade inclined paddles for the stirrer blades.

※The standard angle of the stirrer blade is 45 degrees.
※The reduction ratio can be changed for each series.
Available reduction ratios
KB30 (E)
KB60 (E): 5,10,15,20,30,50
KB120 (E)
KB200 (E): 5,10,15,20,30

※The rotational speed is based on the motor specifications. The actual speed may vary depending on material viscosity, etc.
※The KB30, 60, 120, 200 series can also be configured for single-phase 200-240V or three-phase 200-240V.
