Pressure Tank TA series

Pressure tanks TA series is designed such that material which has been filled in an inner container can be put into the tank and used. Since the material is not filled directly into the pressure tank, cleaning of the tank body is not required. Besides our stainless steel inner container, you can use other containers available in the market.

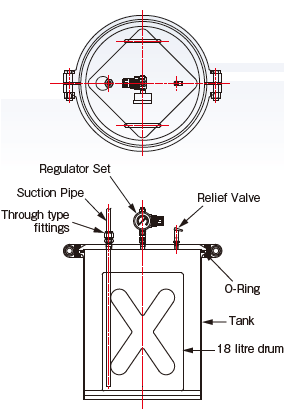

TAB350 is a large pressure tank type which 18 litre drum or pail available in the market can be placed directly into the tank.

We have a wide range of options from which you can select according to your requirements.

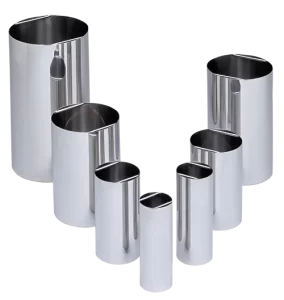

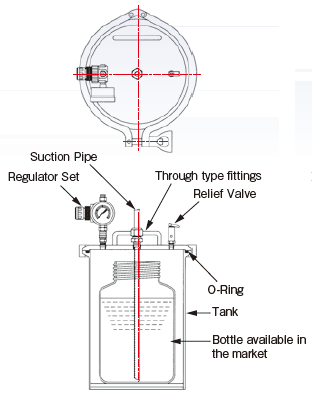

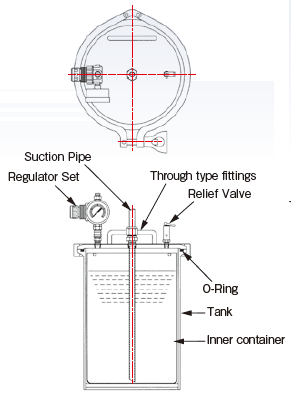

Plastic Containers Available In The Market Standard Inner Containers 18 Litre Drum / Pail



Model TA90N TA100N TA125N TA150 TA200 TA201 TA253 TA254 TAB350
Material SUS304*1/SUS316*2
Operating Pressure Maximum 0.49MPa
Lid Opening &
Closing System
Ferrule Clamp Type
Sealing O-Ring Seal Type(Standard NBR*)
Relief Valve Select from options
Finishing Buff polishing for inner and outer surface
Capacity (L) 1.8 2.5 3.4 4.9 10.1 11.8 23.7 23.7 39.3
A (mm) 134 150 175 205 261 261 308 308 470
B (mm) 167 184 214 246 305 305 340 340 403
Total Height (mm) 270 285 270 275 325 375 475 485 458
Inner Height(mm) 252 267 250 250 300 350 450 450 420
Inner Diameter(mm) 97 110 133 158 208 208 259 259 345
Thickness(mm) 2 4 3
Weight (kg) 2.5 3.1 4.5 6.7 14.5 15.8 24.2 25.3 39.6

*1 The shape of the bottom and the tap size and its location on the lid may differ depending on the models made of SUS304.
*2 TA90N/TA100N/TA125N made of SUS316L differs from SUS304 models (drawing above – please request for catalogue) in the bottom shape and it shall be disk structure.
*Besides NBR, other O-Ring material such as Silicone, FEP/Silicone double O-ring, FFKM, Kalrez®, EPDM, FKM are available. Please select the one which is compatible with your material.
For detailed drawings, please contact our sales department.
