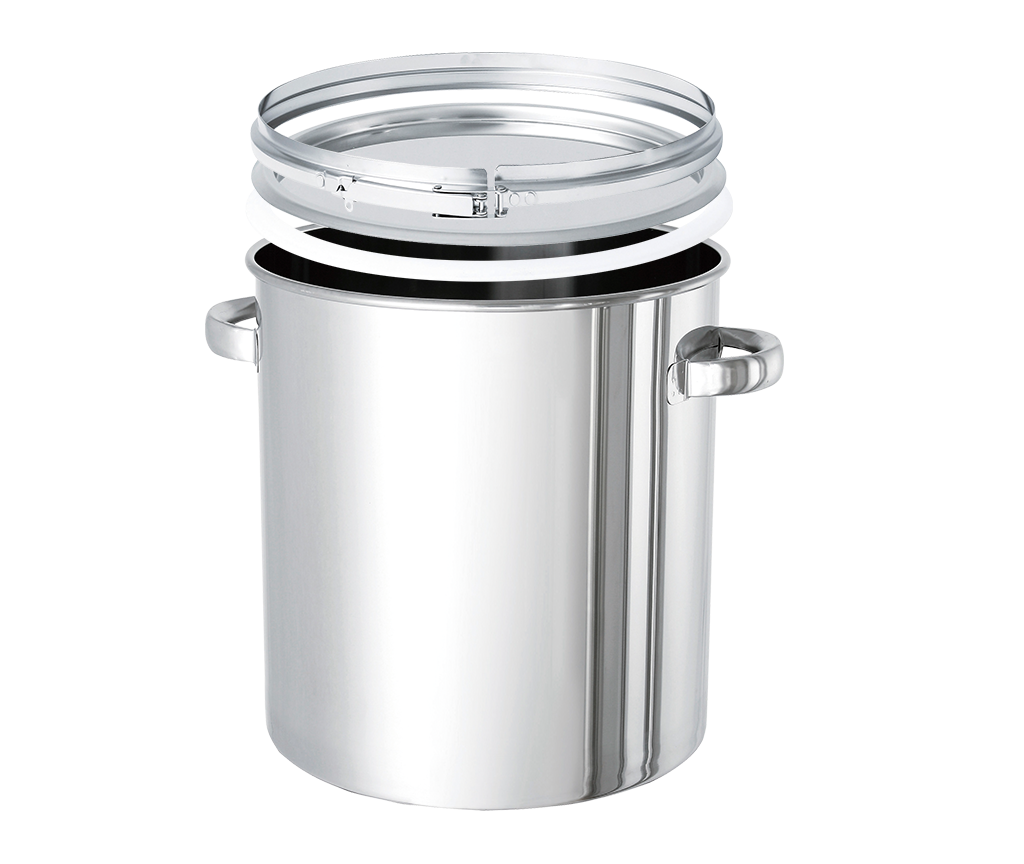

Pressure Tank TM series (top port)

The TM series (top-port) pressure tank is the most suitable tank for pressure feeding of low viscosity materials. It is lightweight, easy to handle and hence it is also suitable for transportation. The pressure tank has a safe structure in which the lid cannot be opened when it is pressurized. The relief valve is part of the standard equipment. (The exhaust air pressure setting is 0.59MPa.) We have a wide range of options from which you can choose the one which suits your requirements. The chemical resistant relief valve (SR) with an optional level gauge (LG) and minimum level switch (1S) are always in stock and can be delivered immediately.

Model TM5R TM10R TM18R TM21R TM20R TM39R
Material SUS304/SUS316L
Operating Pressure Maximum 0.49MPa
Lid Opening & Closing System One-touch level lock type
Sealing O-ring seal type (standard NBR*)
Relief Valve Standard Equipment (Exhaust Pressure set at 0.59MPa)
Finishing Acid cleaning of inner surface and hairline of outer surface(Straight barrel)
Capacity (L) 5.3 11.7 19.4 21.4 24.7 38.8
Straight BarreL(mm) 87 239 424 474 262 435
Total Height (mm) 215 367 552 602 436 609
Inner diameter(mm) 226 312
D(mm) 228 315
Thickness(mm) 0.8(Straight Barrel) 1.2(Straight Barrel)
Weight (kg) 2.1 2.8 3.8 4.0 5.7 7.4

*Besides NBR, other O-Ring material such as Silicone, FEP/Silicone double O-ring, FFKM, Kalrez®, EPDM, FKM are available.
Please select the one which is compatible with your material.
For detailed drawings, please contact our sales department.
