V300 Valve Series (Large Pinch Type)

Since the fluid flow is stopped or flowed by sandwiching the tube, there is no need to clean it because no material enters the valve. For dispensers, large diameter tubes can be used.

Suitable for various types of food and drinking water supply and transfer.
By using a tube that complies with the Food Sanitation Law, it can be set on a food production line.

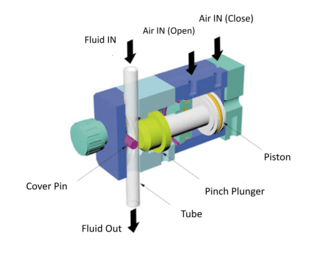

Structure of the valve

Working pressure	0.29MPa or higher
Material pressure	MAX0.49MPa
Minimum discharge	2cc
Piping connection diameter	Pneumatic IN: Φ6
Piping connection diameter	Liquid feed tube: Outer diameter Φ8 ~ Φ22
weight	2,600g
